Daily Output Up to 500 Cups
Compactness
Durability
Ease of Use

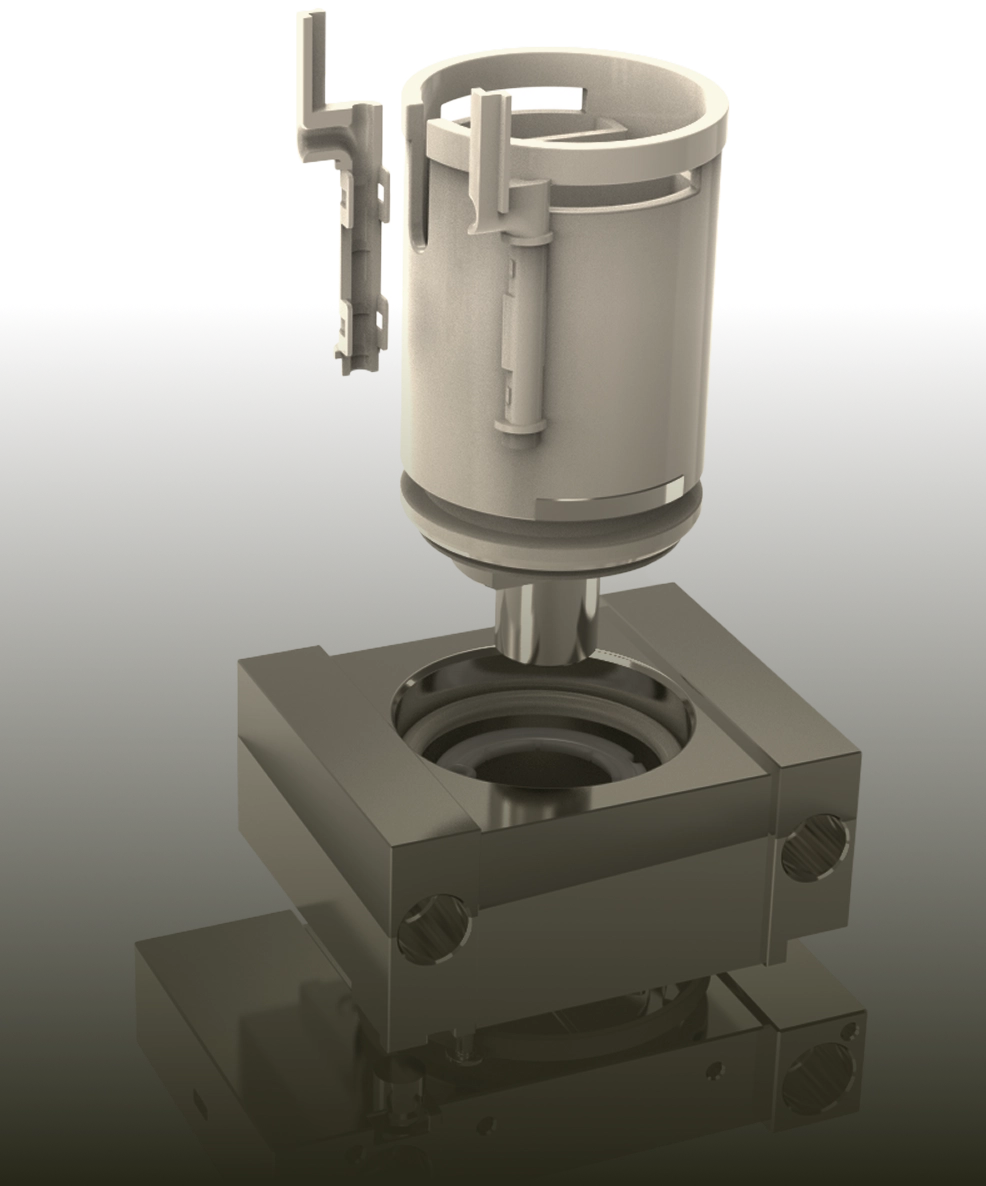

Patented All-Metal Brew Group:
Crafted from high-grade metal (no fragile plastics), it’s built to resist wear, corrosion, and the stress of nonstop daily brewing. Whether you’re pulling 50 or 500 shots a day, this brewing unit stays tough—no weak points, no unexpected breakdowns.
Industry-Leading BLDC Motor:
We’ve paired it with a top-brand BLDC motor: engineered with precision bearings and heat-resistant components, it runs cooler, prevents overheating, and maintains consistent power through thousands of cycles. Even during morning rushes or long shifts, it keeps up—no lag, no early failure.
Full Metal Bracket:
Crafted from high-grade metal, it resists rust and corrosion—even with daily coffee spills and exposure to moisture. Sturdy enough to handle grinder vibrations and component weight, it stays stable long-term, while its smooth, non-porous surface is easy to clean and hygienic.
Flame-Retardant Metal Housing
Made from a flame-retardant alloy that meets industry safety standards, it shields against high temperatures and potential fire hazards (such as hot surfaces or electrical issues). It also absorbs impact, protecting internal components from accidental bumps—keeping your machine, staff, and customers safe.

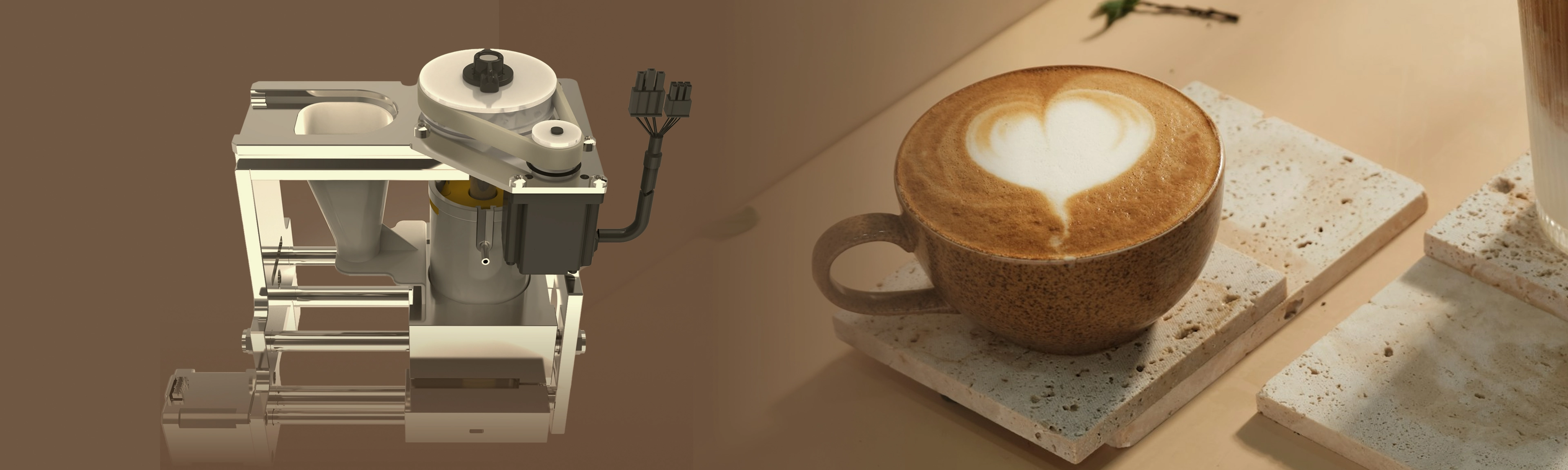

Uniform Force Distribution:
Its surface-contact design distributes stress evenly across the helical teeth, avoiding the concentrated wear common in gear or belt drives.
High Structural Rigidity:
Crafted from high-strength metals, the helical structure resists deformation under impact or load fluctuations, maintaining consistent performance.
Protected Operation:
It can be easily sealed and lubricated to block debris and reduce friction, preventing abrasive damage and extending the service life.

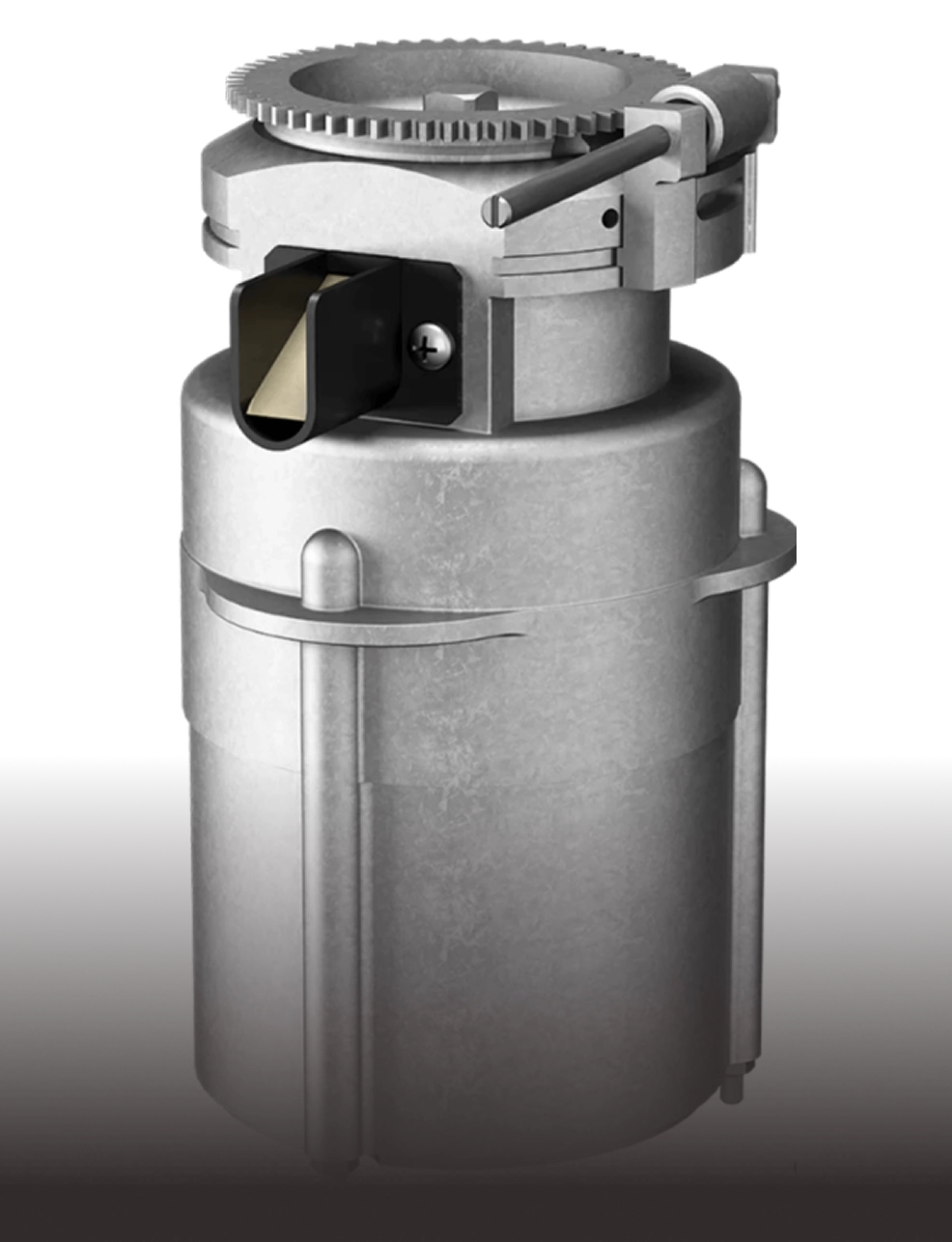

Full-Metal Grinding Assembly:
Crafted entirely from metal, it resists wear, deformation, and breakage even after frequent grinding, eliminating the risk of fragile plastic parts failing.
AC Induction Motor:
A robust workhorse designed for longevity. It operates stably without overheating or sudden malfunctions, ensuring zero unexpected breakdowns of this critical component.
With these key parts built to “not fail,” the coffee machine delivers uncompromised durability—saving you maintenance costs and keeping your business running smoothly.
Brew the Perfect Cup of Coffee: Equipped with a 58mm portafilter, a patented top-down spray water distribution system, a BLDC motor + screw structure for precise tamping force, plus brew group preheating and a 1.2L boiler (for stable temperature during continuous use), we guarantee every cup delivers optimal flavor.

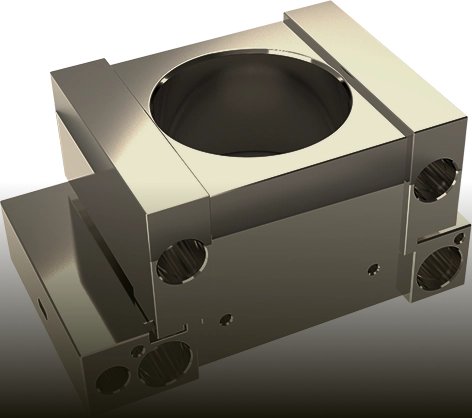

58mm brewing group

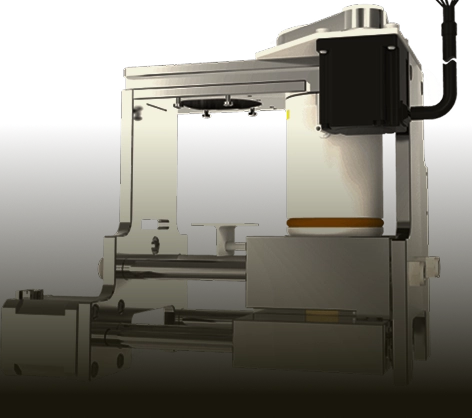

Tamping Force Adjustment

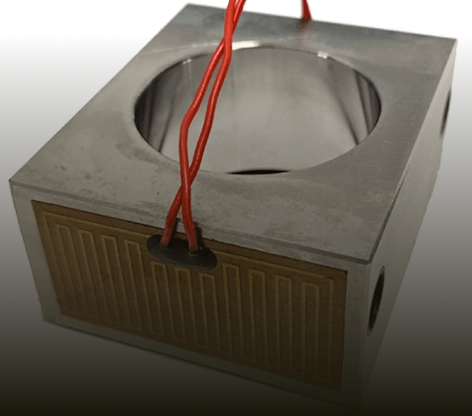

Brewing Group Preheating

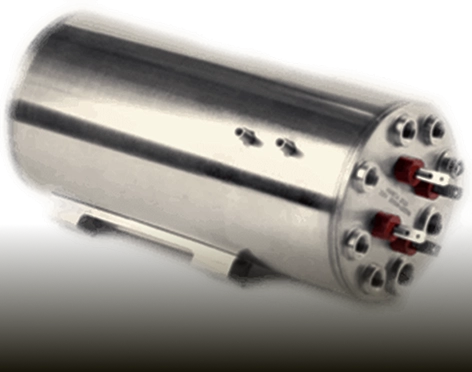

1.2L Water Boiler

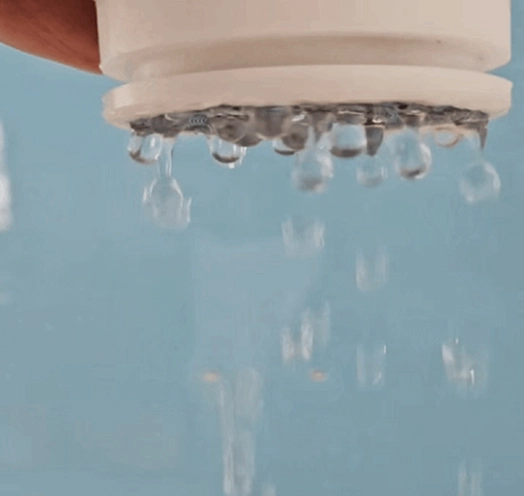

Shower Head Water Distribution

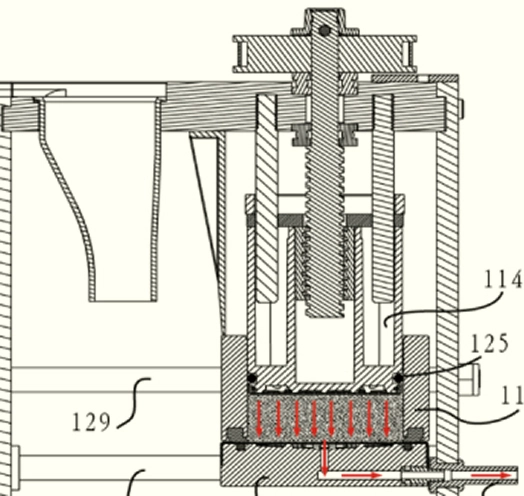

Top-Down Extraction Method

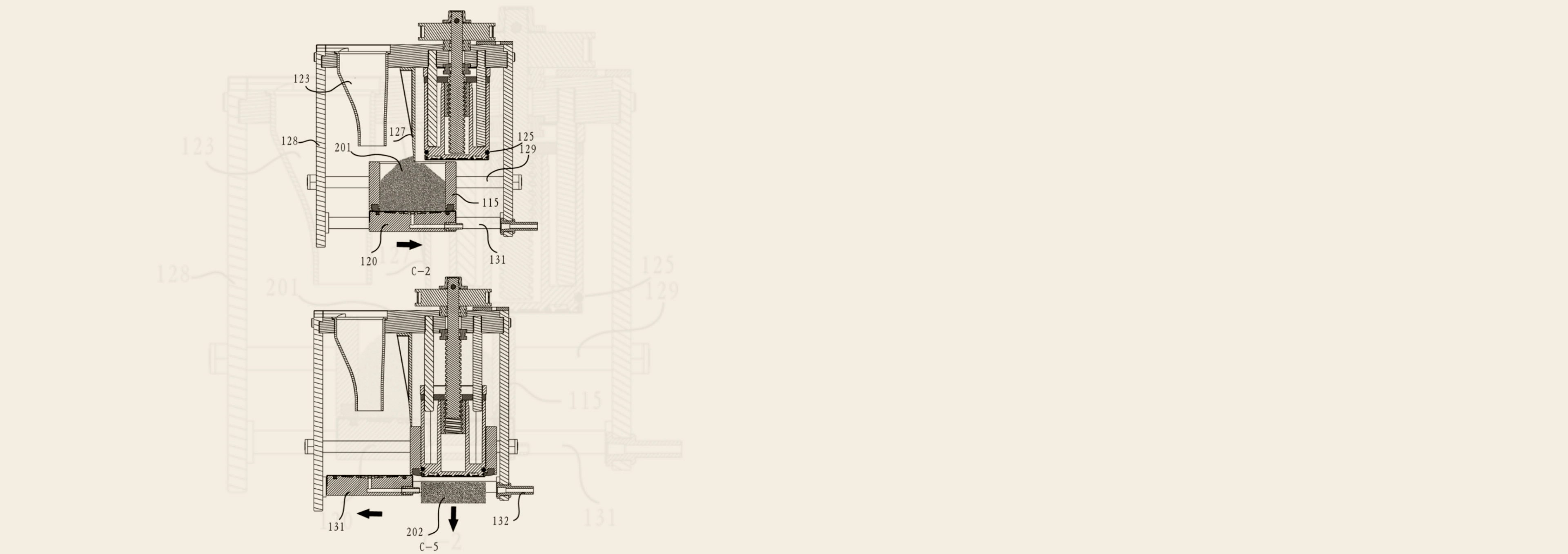

The coffee machine requires no disassembly for cleaning, thanks to two automatic functions:
Automatic powder scraping: Wipes away all leftover powder, leaving no residue.
Post-brew grounds drop: Used coffee grounds fall off automatically after brewing.

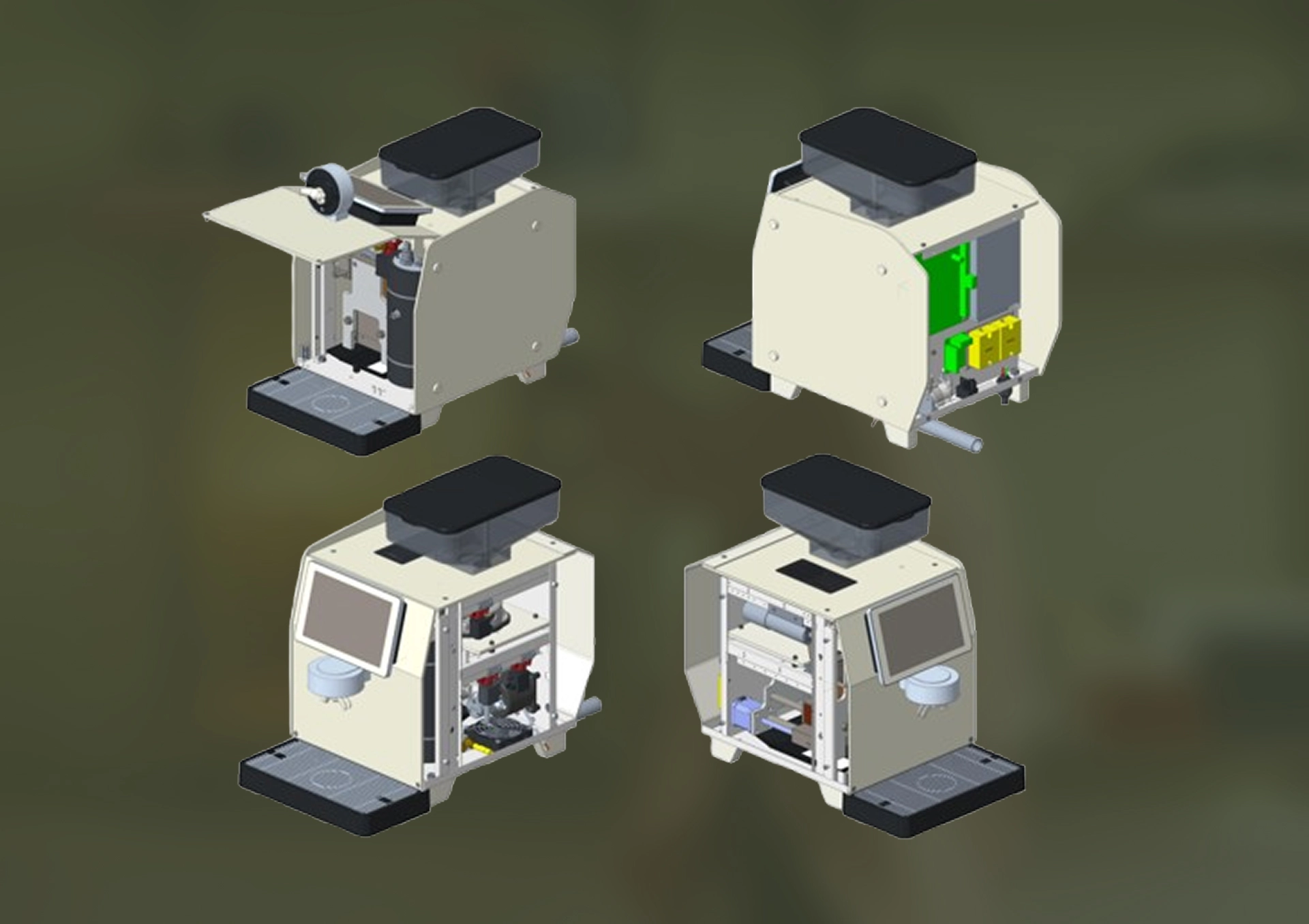

Removing the covers of different components allows for quick troubleshooting and accessory replacement, reducing maintenance time.

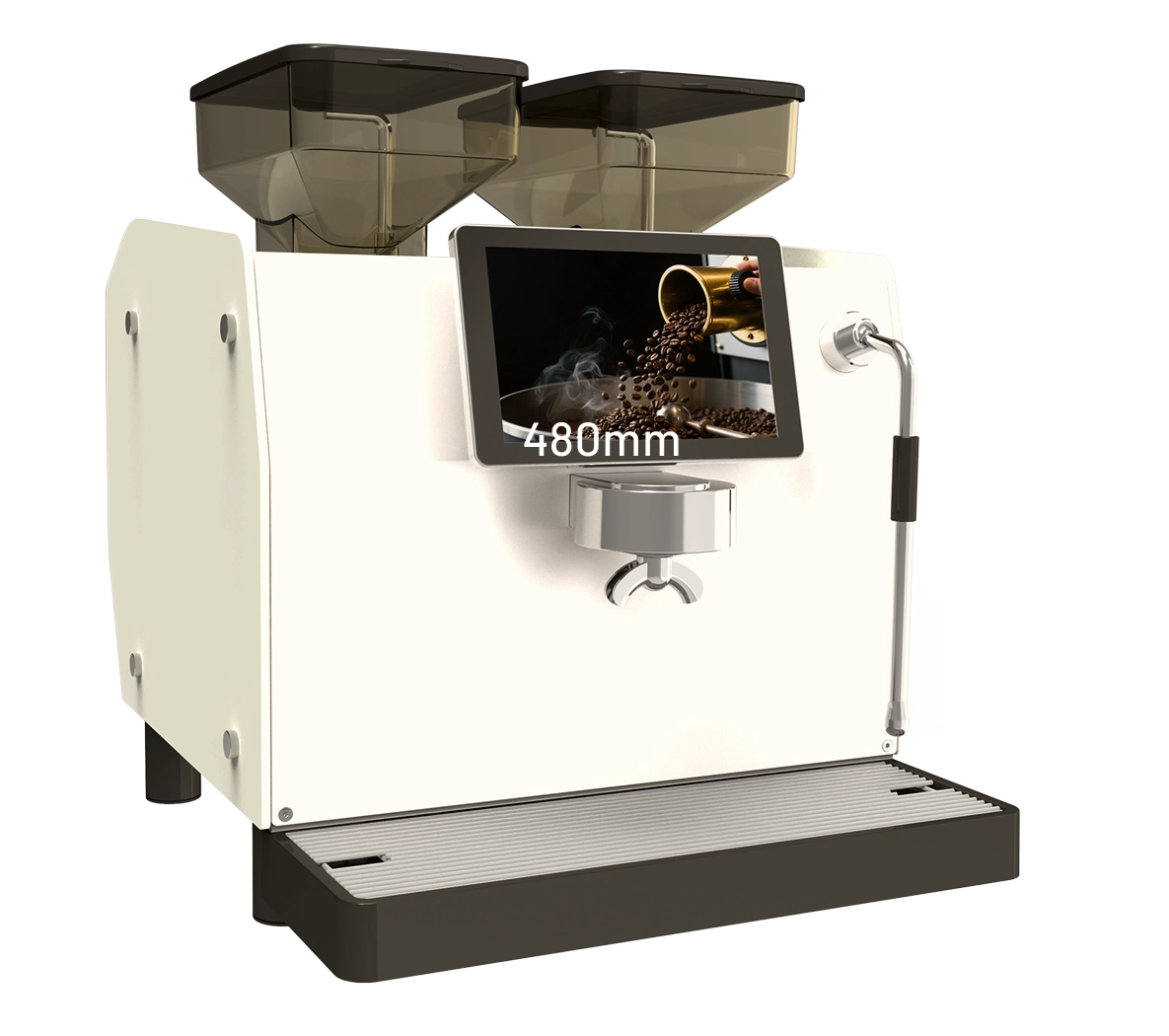

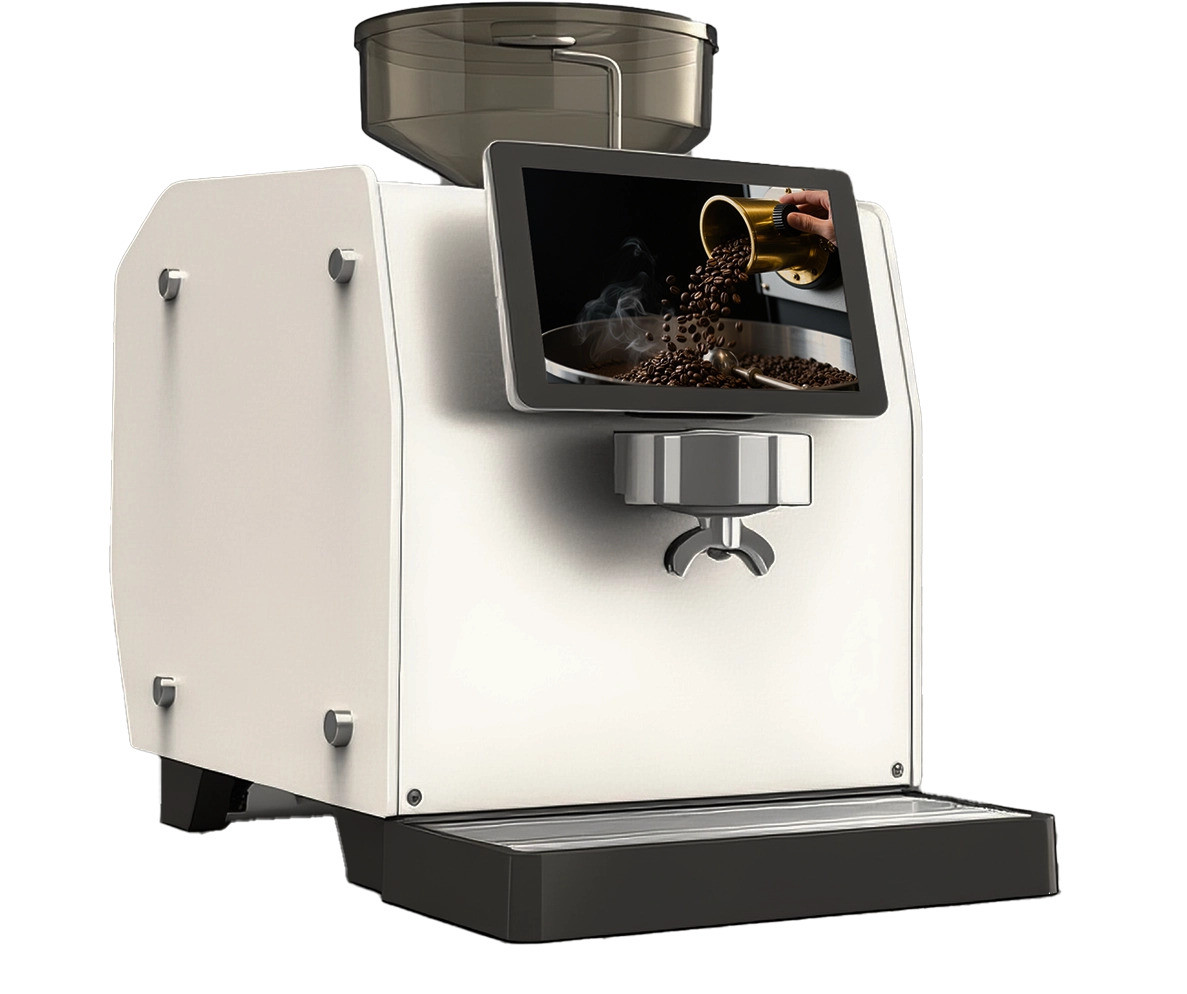

| Model | ELF-01 | ELF-02 |
|---|---|---|
| Recommended Daily Output | 500 cups | 500 cups |
| Hourly output | 160 cups | 180 cups |
| Dimension (W*H*D) | 310*460*480mm | 430*460*480mm |
| Net Weight | 27kg | 33kg |
| Power | 3000W | 3000W |
| Voltage | 220-240V/50-60Hz | 220-240V/50-60Hz |
| Display | 8-inch 16:10 IPS Full-View Angle Screen | 8-inch 16:10 IPS Full-View Angle Screen |
| Bean Hopper Capacity | 1kg | 1kg*2 |
| Boiler Capacity | 1.2L (Water) | 1.2L (Water), 1.2L (Steam) |
| Water Inlet | 6mm quick plug for bottled water or tap water | 6mm quick plug for bottled water or tap water |
| Grinder | DITING commercial grinder | DITING commercial grinder |
| Water pump | BLDC magnetic drive extraction pump | BLDC magnetic drive extraction pump |
| Brewer capacity | 30g | 30g |
| Grounds Container Capacity | Automatic Grounds Discharging / 50-Piece Coffee Grounds Tray | Automatic Grounds Discharging / 50-Piece Coffee Grounds Tray |
